1604780000 | Weidmüller
Pin header, 3 pole, pitch 3.5 mm, straight, orange, 1604780000
Order No.: 51P7293
EAN: 4008190014322
MPN:
1604780000
SL 3.50/03/180 3.2SN OR BX
Unit Price (€ / pc.)
0.9401 € *
Available: 0 pcs.
Available in 6 Days: 200 pcs.
Leadtime: 6 Weeks **
Total Price:
0.94 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9401 €
10 pcs.
0.8687 €
50 pcs.
0.7973 €
100 pcs.
0.7140 €
*incl. VAT plus shipping costs
**Subject to prior sale

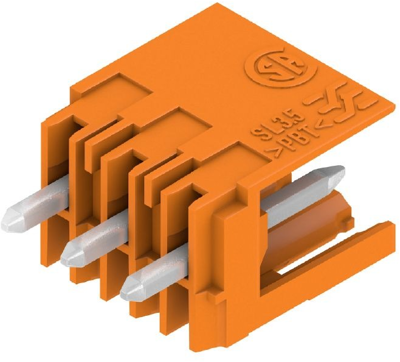

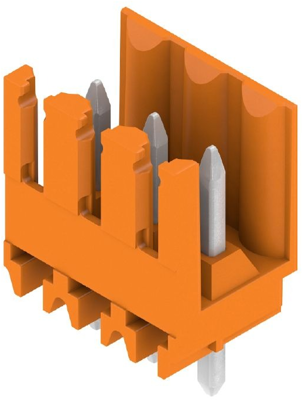

Male connector, 1604780000, Weidmüller
PCB connector, open side, THT solder termination, 3.50 mm, no. of poles: 3, 180°, 3.2 mm, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Version | pin header | |
| Pin number | 3 pole | |
| Rated voltage | 320 V | |
| Contact type | pin | |
| Connection | PCB connection | |
| Number of rows | 1 | |
| Orientation | straight | |
| Additional parts | equipped | |
| Rated current | 17 A | |
| Grid | 3.5 mm | |
| contact surface | tin-plated | |
| Colour | orange |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
