1604600000 | Weidmüller

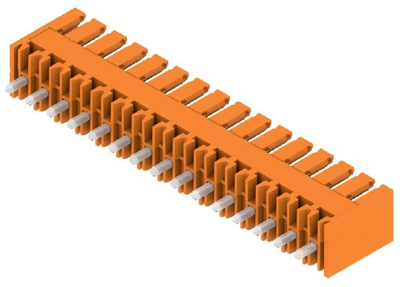

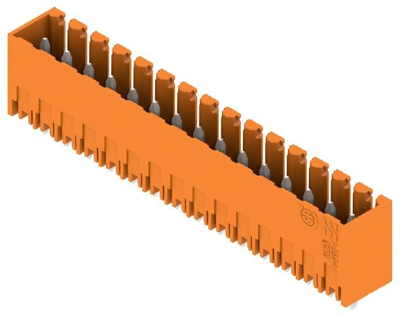

Pin header, 15 pole, pitch 3.5 mm, straight, orange, 1604600000
Order No.: 51P7290
EAN: 4008190003999
MPN:
1604600000
SL 3.50/15/180G 3.2SN OR BX
Unit Price (€ / pc.)
4.7362 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
4.74 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7362 €
10 pcs.
4.3554 €
50 pcs.
3.9627 €
100 pcs.
3.5700 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male connector, 1604600000, Weidmüller
Printed Circuit Board Connector, Side-Closed, THT Solder Termination, 3.50 mm, No. of Poles: 15, 180°, 3.2 mm, tinned, orange, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | orange | |
| contact surface | tin-plated | |
| Rated current | 17 A | |
| Grid | 3.5 mm | |
| Pin number | 15 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 320 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
