1604540000 | Weidmüller
Pin header, 9 pole, pitch 3.5 mm, straight, orange, 1604540000
Order No.: 51P7284
EAN: 4008190155643
MPN:
1604540000
SL 3.50/09/180G 3.2SN OR BX
Unit Price (€ / pc.)
2.8441 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Total Price:
2.84 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8441 €
10 pcs.
2.6061 €
50 pcs.
2.3800 €
100 pcs.
2.1301 €
*incl. VAT plus shipping costs
**Subject to prior sale

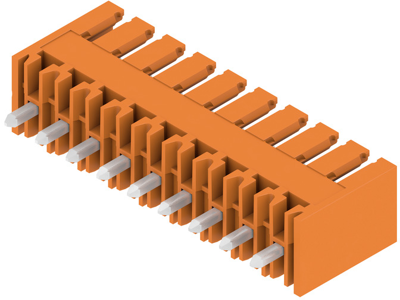

Male connector, 1604540000, Weidmüller

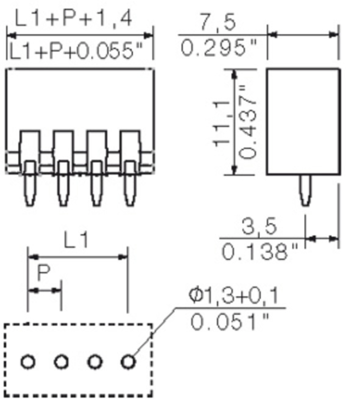

Printed circuit board connector, closed side, THT solder termination, 3.50 mm, no. of poles: 9, 180°, 3.2 mm, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| contact surface | tin-plated | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Pin number | 9 pole | |
| Rated current | 17 A | |
| Grid | 3.5 mm | |
| Rated voltage | 320 V | |
| Orientation | straight | |
| Colour | orange | |
| Connection | PCB connection | |
| Contact type | pin | |
| Version | pin header |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
