1604530000 | Weidmüller
Pin header, 8 pole, pitch 3.5 mm, straight, orange, 1604530000
Order No.: 51P7283
EAN: 4008190090975
MPN:
1604530000
SL 3.50/08/180G 3.2SN OR BX
Unit Price (€ / pc.)
2.5228 € *
Available in 6 Days: 250 pcs. - if ordered today
Total Price:
2.52 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5228 €
10 pcs.
2.3205 €
50 pcs.
2.1063 €
100 pcs.
1.9040 €
*incl. VAT plus shipping costs
Subject to prior sale

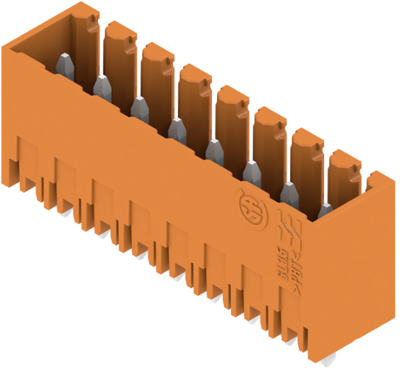

Male connector, 1604530000, Weidmüller
Board Connector, closed sideways, THT solder termination, 3.50 mm, no. of poles: 8, 180°, 3.2 mm, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.5 mm | |
| Pin number | 8 pole | |
| Colour | orange | |
| Contact type | pin | |
| Rated current | 17 A | |
| Version | pin header | |
| Connection | PCB connection | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Rated voltage | 320 V | |
| contact surface | tin-plated | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
