1604520000 | Weidmüller
Pin header, 7 pole, pitch 3.5 mm, straight, orange, 1604520000
Order No.: 51P7282
EAN: 4008190178727
MPN:
1604520000
SL 3.50/07/180G 3.2SN OR BX
Unit Price (€ / pc.)
2.2015 € *
Available in 6 Days: 100 pcs. - if ordered today
Total Price:
2.20 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2015 €
10 pcs.
2.0349 €
50 pcs.
1.8564 €
100 pcs.
1.6660 €
*incl. VAT plus shipping costs
Subject to prior sale

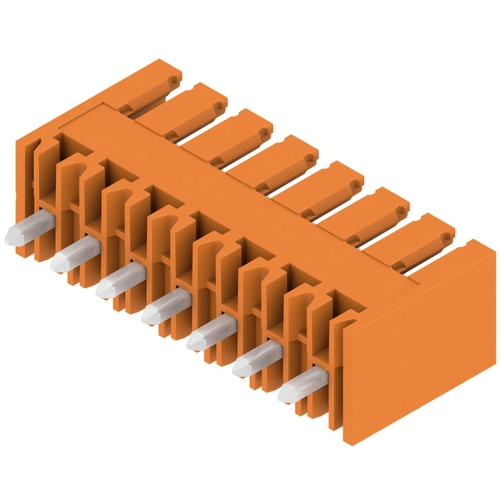

Male connector, 1604520000, Weidmüller

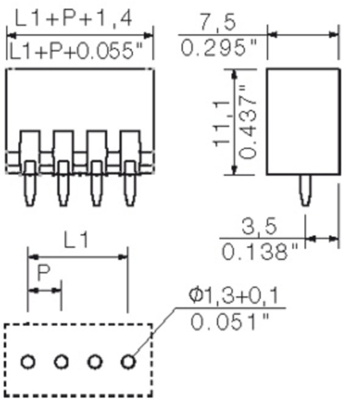

Printed circuit board connector, closed side, THT solder termination, 3.50 mm, no. of poles: 7, 180°, 3.2 mm, tinned, orange, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Additional parts | equipped | |
| Rated voltage | 320 V | |
| Pin number | 7 pole | |
| Grid | 3.5 mm | |
| Version | pin header | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated current | 17 A | |
| Orientation | straight | |
| contact surface | tin-plated | |
| Colour | orange | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
