1604480000 | Weidmüller

Pin header, 3 pole, pitch 3.5 mm, straight, orange, 1604480000

Order No.: 51P7278
EAN: 4008190049621
MPN:
1604480000
SL 3.50/03/180G 3.2SN OR BX

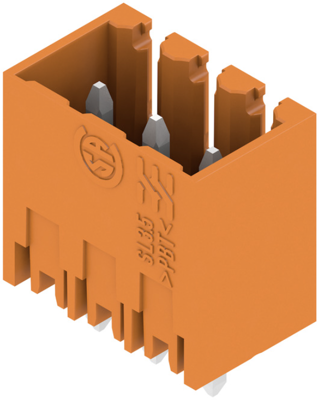

1604480000 Weidmüller PCB Connection Systems Image 1

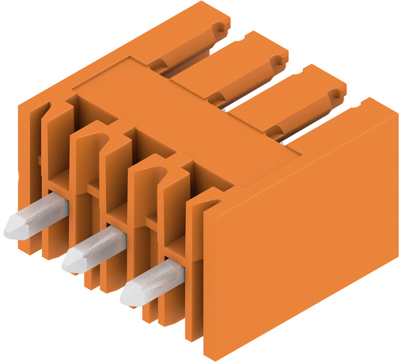

1604480000 Weidmüller PCB Connection Systems Image 2

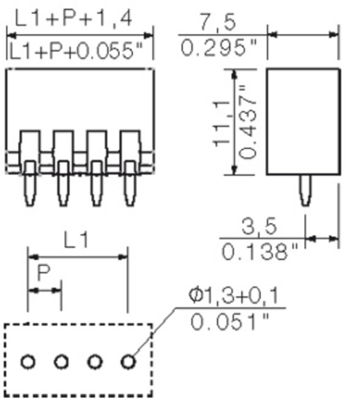

1604480000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
0.9639 € *
Available: 55 pcs.
Total Price:
0.96 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9639 €
500 pcs.
0.8806 €
2500 pcs.
0.7973 €
*incl. VAT plus shipping costs
Subject to prior sale

Male connector, 1604480000, Weidmüller

Printed circuit board connector, closed side, THT solder termination, 3.50 mm, no. of poles: 3, 180°, 3.2 mm, tinned, orange, box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Grid 3.5 mm
Orientation straight
Connection PCB connection
Contact type pin
Rated current 17 A
Additional parts equipped
Version pin header
Pin number 3 pole
contact surface tin-plated
Number of rows 1
Colour orange
Rated voltage 320 V
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
