1602550000 | Weidmüller

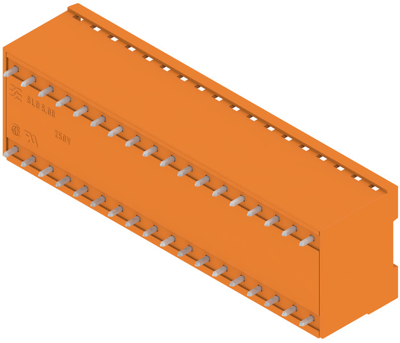

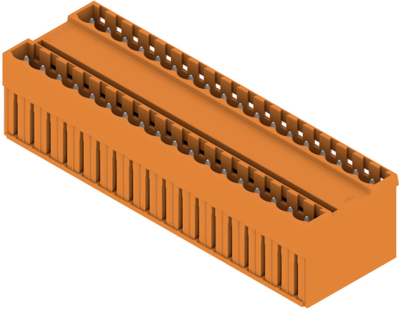

Pin header, 36 pole, pitch 5.08 mm, straight, orange, 1602550000
Order No.: 51P7235
EAN: 4008190047306
MPN:
1602550000
SLD 5.08/36/180G 3.2SN OR BX
Unit Price (€ / pc.)
16.4815 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
16.48 € *
Price list
Quantity
Price per unit*
1 pcs.
16.4815 €
10 pcs.
15.3391 €
50 pcs.
14.1134 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male connector, 1602550000, Weidmüller
Board Connector, Male Connector, Closed Sideways, THT Solder Termination, 5.08 mm, No. of Poles: 36, 180°, 3.2 mm, Tin Plated, Orange, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Number of rows | 2 | |
| Version | pin header | |
| Additional parts | unequipped | |
| Colour | orange | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 400 V | |
| Rated current | 11 A | |
| Orientation | straight | |
| Pin number | 36 pole | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
