1602530000 | Weidmüller

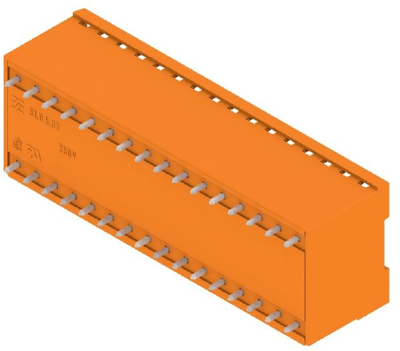

Pin header, 32 pole, pitch 5.08 mm, straight, orange, 1602530000
Order No.: 51P7233
EAN: 4008190071387
MPN:
1602530000
SLD 5.08/32/180G 3.2SN OR BX
Unit Price (€ / pc.)
15.6723 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
15.67 € *
Price list
Quantity
Price per unit*
1 pcs.
15.6723 €
10 pcs.
14.4109 €
50 pcs.
13.1138 €
100 pcs.
11.8048 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1602530000, Weidmüller
Printed circuit board connectors, male header, closed side, THT solder termination, 5.08 mm, no. of poles: 32, 180°, 3.2 mm, tin plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | orange | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Connection | PCB connection | |
| Rated voltage | 400 V | |
| Orientation | straight | |
| contact surface | tin-plated | |
| Version | pin header | |
| Pin number | 32 pole | |
| Contact type | pin | |
| Grid | 5.08 mm | |
| Rated current | 11 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
