1601900000 | Weidmüller

Pin header, 26 pole, pitch 5.08 mm, angled, orange, 1601900000

Order No.: 51P7207
EAN: 4008190098476
MPN:
1601900000
SLD 5.08/26/90G 3.2SN OR BX
Weidmüller

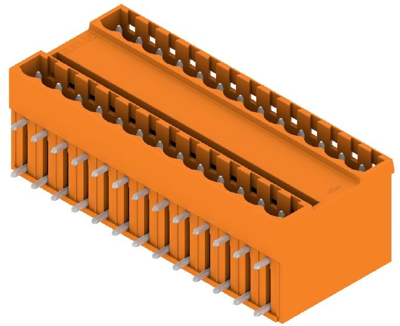

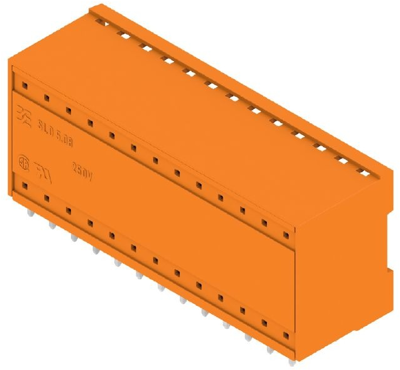

1601900000 Weidmüller PCB Connection Systems Image 1
1601900000 Weidmüller PCB Connection Systems Image 2
1601900000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
12.2689 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
12.27 € *
Price list
Quantity
Price per unit*
1 pcs.
12.2689 €
10 pcs.
11.4121 €
50 pcs.
10.3768 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male connector, 1601900000, Weidmüller

Board Connector, Male Connector, Side Closed, THT Solder Termination, 5.08 mm, No. of Poles: 26, 90°, 3.2 mm, tinned, orange, Box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Connection PCB connection
Number of rows 2
Version pin header
Additional parts equipped
Colour orange
Contact type pin
contact surface tin-plated
Rated voltage 400 V
Rated current 11 A
Orientation angled
Pin number 26 pole
Grid 5.08 mm
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
