1599190000 | Weidmüller

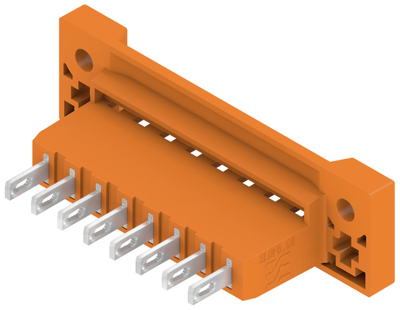

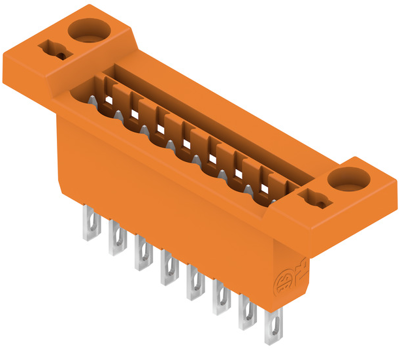

Pin header, 8 pole, pitch 5.08 mm, straight, orange, 1599190000
Order No.: 51P7178
EAN: 4008190126544
MPN:
1599190000
SLDF 5.08 L/F 8 SN OR BX
Unit Price (€ / pc.)
5.1527 € *
Available in 6 Days: 150 pcs. - if ordered today
Total Price:
5.15 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1527 €
10 pcs.
4.7957 €
50 pcs.
4.3554 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1599190000, Weidmüller
PCB Connector, Male Connector, 5.08 mm, No. of Poles: 8, tin plated, orange, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | orange | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Connection | PCB connection | |
| Rated voltage | 400 V | |
| Orientation | straight | |
| contact surface | tin-plated | |
| Version | pin header | |
| Pin number | 8 pole | |
| Contact type | pin | |
| Grid | 5.08 mm | |
| Rated current | 15 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
