1599160000 | Weidmüller
Pin header, 5 pole, pitch 5.08 mm, straight, orange, 1599160000
Order No.: 51P7175
EAN: 4008190079970
MPN:
1599160000
SLDF 5.08 L/F 5 SN OR BX
Unit Price (€ / pc.)
3.3558 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
3.36 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3558 €
10 pcs.
3.1059 €
50 pcs.
2.7965 €
*incl. VAT plus shipping costs
Subject to prior sale

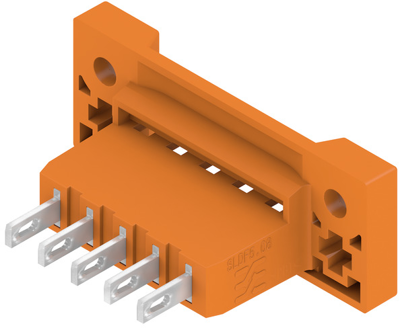

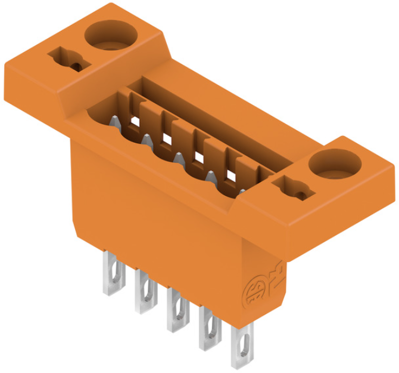

Male connector, 1599160000, Weidmüller
PCB connector, male header, 5.08 mm, no. of poles: 5, tin plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of rows | 1 | |
| Rated current | 15 A | |
| Contact type | pin | |
| Grid | 5.08 mm | |
| Pin number | 5 pole | |
| Orientation | straight | |
| Rated voltage | 400 V | |
| Additional parts | equipped | |
| Connection | PCB connection | |
| contact surface | tin-plated | |
| Colour | orange | |
| Version | pin header |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
