1597460000 | Weidmüller

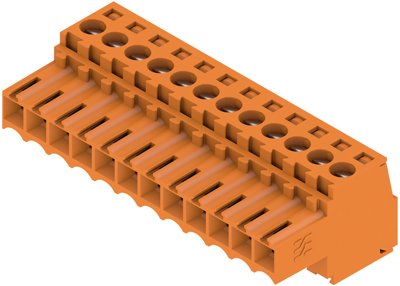

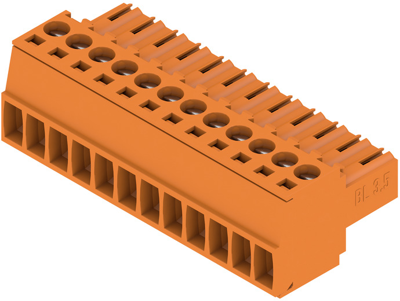

Socket header, 12 pole, pitch 3.5 mm, straight, orange, 1597460000
Order No.: 51P7157
EAN: 4008190192037
MPN:
1597460000
BL 3.50/12/180 SN OR BX
Unit Price (€ / pc.)
10.3411 € *
Available: 40 pcs.
Available in 6 Days: 210 pcs. - if ordered today
Total Price:
10.34 € *
Price list
Quantity
Price per unit*
1 pcs.
10.3411 €
10 pcs.
9.5200 €
50 pcs.
8.6632 €
100 pcs.
7.7945 €
*incl. VAT plus shipping costs
Subject to prior sale
Female connector, 1597460000, Weidmüller
PCB connector, closed sideways, 3.50 mm, no. of poles: 12, tin-plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | orange | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Connection | screw connection | |
| Rated voltage | 320 V | |
| Orientation | straight | |
| contact surface | tin-plated | |
| Version | socket header | |
| Pin number | 12 pole | |
| Contact type | socket | |
| Grid | 3.5 mm | |
| Rated current | 17 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
