1597400000 | Weidmüller
Socket header, 6 pole, pitch 3.5 mm, straight, orange, 1597400000
Order No.: 51P7151
EAN: 4008190119058
MPN:
1597400000
BL 3.50/06/180 SN OR BX
Unit Price (€ / pc.)
4.9623 € *
Available: 78 pcs.
Available in 6 Days: 420 pcs. - if ordered today
Total Price:
4.96 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9623 €
10 pcs.
4.4625 €
50 pcs.
4.0103 €
100 pcs.
3.6176 €
*incl. VAT plus shipping costs
Subject to prior sale

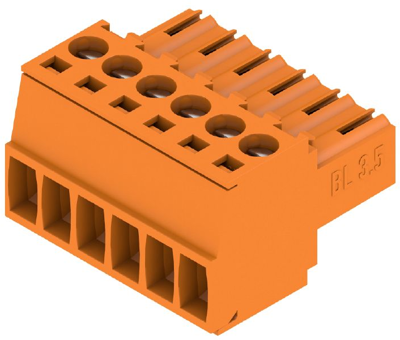

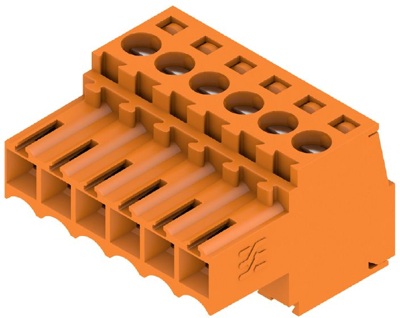

Female connector, 1597400000, Weidmüller
Printed Circuit Board Connector, side closed, 3.50 mm, no. of poles: 6, tinned, orange, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | socket | |
| Grid | 3.5 mm | |
| Colour | orange | |
| contact surface | tin-plated | |
| Version | socket header | |
| Additional parts | equipped | |
| Rated current | 17 A | |
| Number of rows | 1 | |
| Pin number | 6 pole | |
| Orientation | straight | |
| Connection | screw connection | |
| Rated voltage | 320 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
