1597390000 | Weidmüller

Socket header, 5 pole, pitch 3.5 mm, straight, orange, 1597390000

Order No.: 51P7150
EAN: 4008190134785
MPN:
1597390000
BL 3.50/05/180 SN OR BX

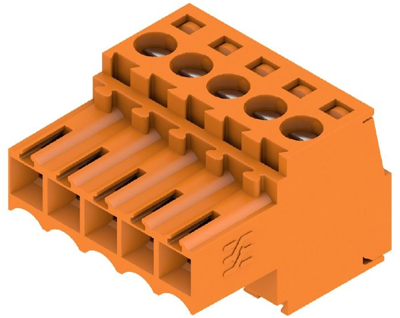

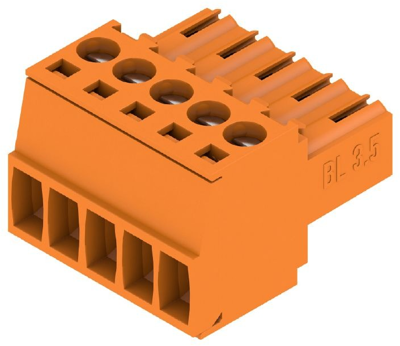

1597390000 Weidmüller PCB Connection Systems Image 1
1597390000 Weidmüller PCB Connection Systems Image 2
1597390000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
4.2245 € *
Available: 47 pcs.
Total Price:
4.22 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2245 €
10 pcs.
3.7247 €
100 pcs.
3.2725 €
250 pcs.
3.1535 €
*incl. VAT plus shipping costs
Subject to prior sale

Female connector, 1597390000, Weidmüller

Socket connectors with screw connection in clamping yoke technique for conductor connection in 3.50 mm pitch. They provide space for labelling and can be coded.

Technical specifications
Filter Property Value
Grid 3.5 mm
Orientation straight
Connection screw connection
Contact type socket
Rated current 17 A
Additional parts equipped
Version socket header
Pin number 5 pole
contact surface tin-plated
Number of rows 1
Colour orange
Rated voltage 320 V
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
