1597310000 | Weidmüller

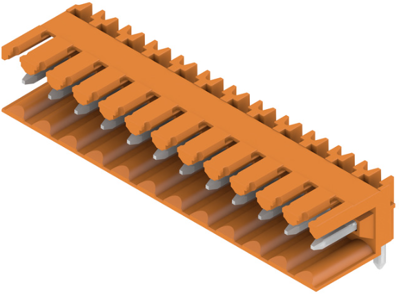

Pin header, 12 pole, pitch 3.5 mm, angled, orange, 1597310000
Order No.: 51P7142
EAN: 4008190018283
MPN:
1597310000
SL 3.50/12/90 3.2SN OR BX
Unit Price (€ / pc.)
3.7842 € *
Available in 6 Days: 100 pcs. - if ordered today
Total Price:
3.78 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7842 €
10 pcs.
3.4867 €
50 pcs.
3.1773 €
100 pcs.
2.8560 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1597310000, Weidmüller
Board Connector, open sided, THT solder termination, 3.50 mm, no. of poles: 12, 90°, 3.2 mm, tin plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Additional parts | equipped | |
| Orientation | angled | |
| Pin number | 12 pole | |
| contact surface | tin-plated | |
| Rated voltage | 320 V | |
| Connection | PCB connection | |
| Colour | orange | |
| Number of rows | 1 | |
| Grid | 3.5 mm | |
| Rated current | 17 A | |
| Contact type | pin | |
| Version | pin header |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
