1597260000 | Weidmüller

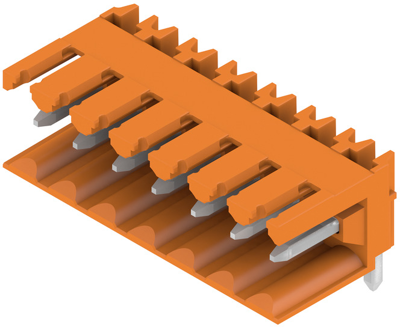

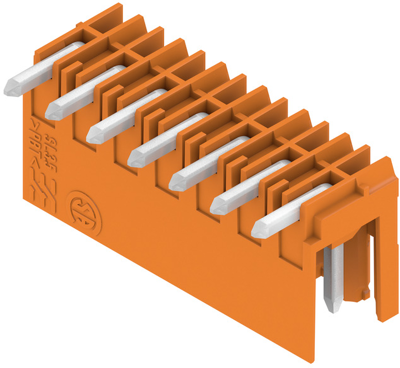

Pin header, 7 pole, pitch 3.5 mm, angled, orange, 1597260000
Order No.: 51P7137
EAN: 4008190044350
MPN:
1597260000
SL 3.50/07/90 3.2SN OR BX
Unit Price (€ / pc.)
2.2015 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
2.20 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2015 €
10 pcs.
2.0349 €
50 pcs.
1.8564 €
100 pcs.
1.6660 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1597260000, Weidmüller
PCB connectors, open sideways, THT solder termination, 3.50 mm, no. of poles: 7, 90°, 3.2 mm, tinned, orange, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| contact surface | tin-plated | |
| Orientation | angled | |
| Number of rows | 1 | |
| Colour | orange | |
| Connection | PCB connection | |
| Rated voltage | 320 V | |
| Contact type | pin | |
| Grid | 3.5 mm | |
| Rated current | 17 A | |
| Pin number | 7 pole | |
| Version | pin header | |
| Additional parts | equipped |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
