1582110000 | Weidmüller
Pin header, 12 pole, pitch 5 mm, straight, orange, 1582110000
Order No.: 50P3603
EAN: 4008190135232
MPN:
1582110000
SL 5.00/12/180B 4.5SN OR BX
Unit Price (€ / pc.)
3.2844 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
3.28 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2844 €
10 pcs.
3.0345 €
50 pcs.
2.8322 €
100 pcs.
2.6418 €
*incl. VAT plus shipping costs
Subject to prior sale

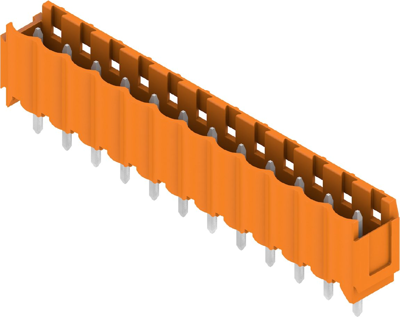

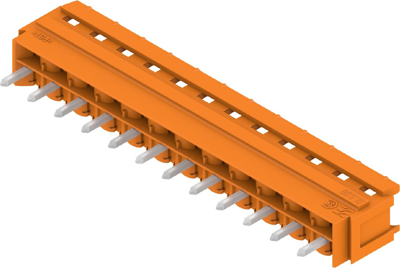

PCB plug-in connector, 1582110000, WEIDMÜLLER

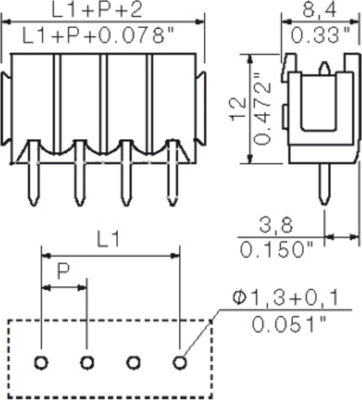

PCB plug-in connector, male header, Dovetails for fixing blocks, THT solder connection, 5.00 mm, Number of poles: 12, 180°, Solder pin length (l): 4.5 mm, tinned, orange.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | orange | |
| Grid | 5 mm | |
| Number of rows | 1 | |
| contact surface | tin-plated | |
| Rated current | 18 A | |
| Connection | solder connection | |
| Version | pin header | |
| Orientation | straight | |
| Pin number | 12 pole | |
| Contact type | pin | |
| Rated voltage | 400 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
