1581420000 | Weidmüller

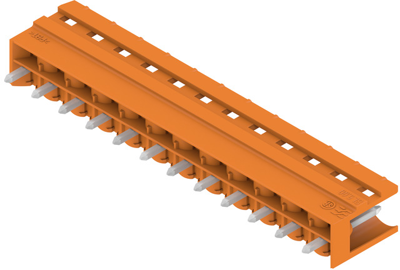

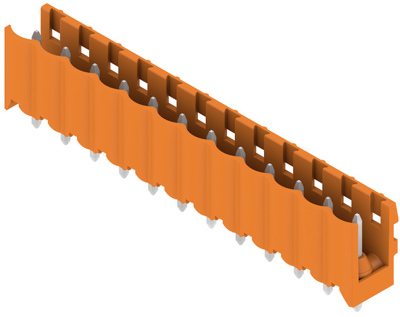

Pin header, 12 pole, pitch 5 mm, straight, orange, 1581420000
Order No.: 51P7016
EAN: 4008190133863
MPN:
1581420000
SL 5.00/12/180 3.2SN OR BX
Unit Price (€ / pc.)
3.4272 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
3.43 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4272 €
10 pcs.
3.1654 €
50 pcs.
2.8798 €
100 pcs.
2.5823 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1581420000, Weidmüller
PCB connectors, side mount, THT solder termination, 5.00 mm, no. of poles: 12, 180°, 3.2 mm, tin plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 400 V | |
| Orientation | straight | |
| Rated current | 18 A | |
| Colour | orange | |
| Pin number | 12 pole | |
| Connection | PCB connection | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Version | pin header | |
| Additional parts | equipped | |
| Grid | 5 mm | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
