1580920000 | Weidmüller

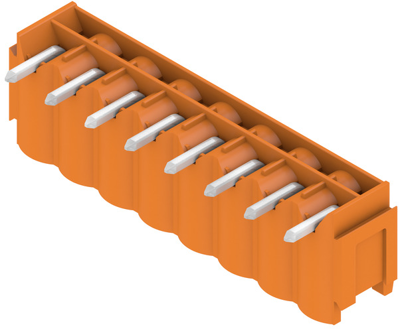

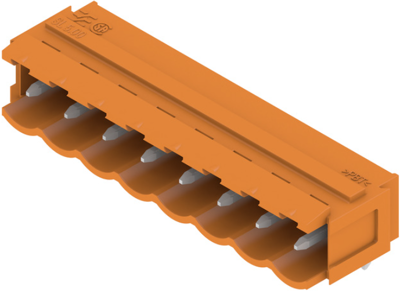

Pin header, 8 pole, pitch 5 mm, angled, orange, 1580920000
Order No.: 51P6989
EAN: 4008190072858
MPN:
1580920000
SL 5.00/08/90B 3.2SN OR BX
Unit Price (€ / pc.)
2.2967 € *
Available in 6 Days: 100 pcs. - if ordered today
Total Price:
2.30 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2967 €
10 pcs.
2.1063 €
50 pcs.
1.9278 €
100 pcs.
1.7255 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1580920000, Weidmüller
PCB connectors, dovetail for mounting blocks, THT solder termination, 5.00 mm, no. of poles: 8, 90°, 3.2 mm, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Orientation | angled | |
| Pin number | 8 pole | |
| contact surface | tin-plated | |
| Rated voltage | 400 V | |
| Connection | PCB connection | |
| Colour | orange | |
| Number of rows | 1 | |
| Grid | 5 mm | |
| Rated current | 18 A | |
| Contact type | pin | |
| Version | pin header |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
