1543250000 | Weidmüller

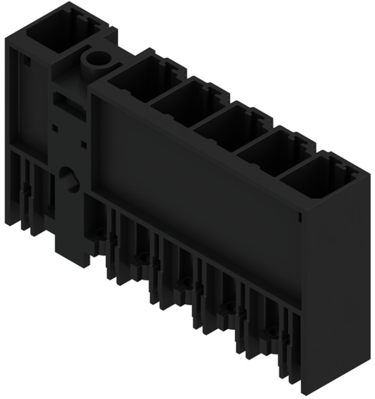

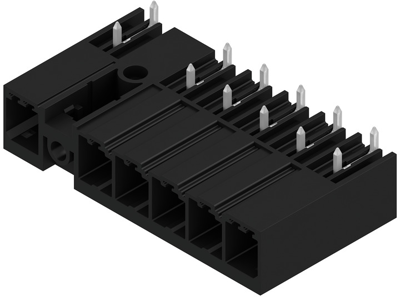

Pin header, 6 pole, pitch 7.62 mm, angled, black, 1543250000
Order No.: 51P6299
EAN: 4050118348286
MPN:
1543250000
SV 7.62HP/06/270MF2 3.5SN BK BX
Unit Price (€ / pc.)
6.9496 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
6.95 € *
Price list
Quantity
Price per unit*
1 pcs.
6.9496 €
10 pcs.
6.4617 €
50 pcs.
5.8786 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1543250000, Weidmüller
PCB connectors, lateral closed, center flange, THT solder termination, 7.62 mm, no. of poles: 6, 270°, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Connection | PCB connection | |
| Rated voltage | 1 kV | |
| Orientation | angled | |
| contact surface | tin-plated | |
| Version | pin header | |
| Pin number | 6 pole | |
| Contact type | pin | |
| Grid | 7.62 mm | |
| Rated current | 57 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
