1531100000 | Weidmüller
Socket header, 12 pole, pitch 3.5 mm, straight, orange, 1531100000
Order No.: 51P6088
EAN: 4050118336207
MPN:
1531100000
BL 3.50/12/180LR SN OR BX
Unit Price (€ / pc.)
7.9730 € *
Available in 6 Days: 72 pcs. - if ordered today

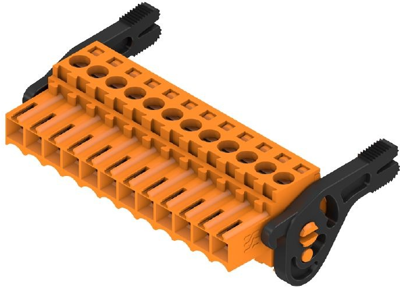

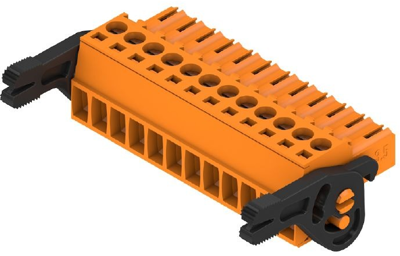

Female connector, 1531100000, Weidmüller
Printed Circuit Board Connector, release latch, 3.50 mm, no. of poles: 12, tin-plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| contact surface | tin-plated | |
| Orientation | straight | |
| Number of rows | 1 | |
| Colour | orange | |
| Connection | screw connection | |
| Rated voltage | 320 V | |
| Contact type | socket | |
| Grid | 3.5 mm | |
| Rated current | 17 A | |
| Pin number | 12 pole | |
| Version | socket header | |
| Additional parts | equipped |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
