1472570000 | Weidmüller

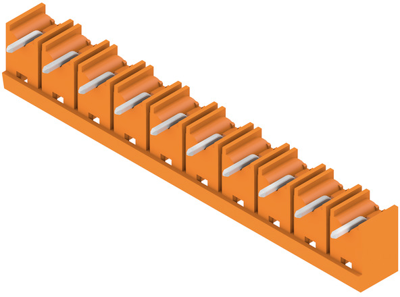

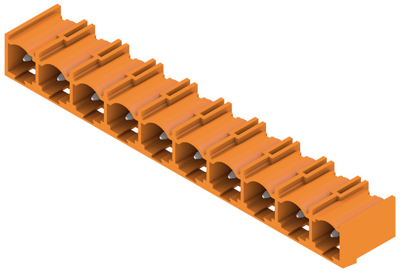

Pin header, 10 pole, pitch 7.62 mm, angled, orange, 1472570000
Order No.: 51P4149
EAN: 4050118317701
MPN:
1472570000
SL 7.62HP/10/270G 3.2SN OR BX
Unit Price (€ / pc.)
4.2483 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
4.25 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2483 €
10 pcs.
3.9151 €
50 pcs.
3.5700 €
100 pcs.
3.2130 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1472570000, Weidmüller
Board Connector, lateral closed, THT solder termination, 7.62 mm, no. of poles: 10, 270°, 3.2 mm, orange, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | orange | |
| Rated current | 27.5 A | |
| Grid | 7.62 mm | |
| Pin number | 10 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 630 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
