1472290000 | Weidmüller

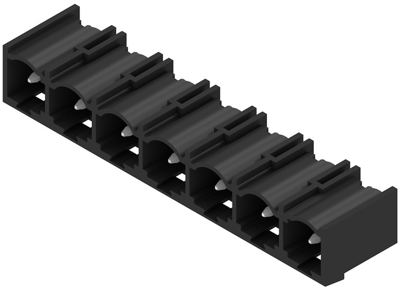

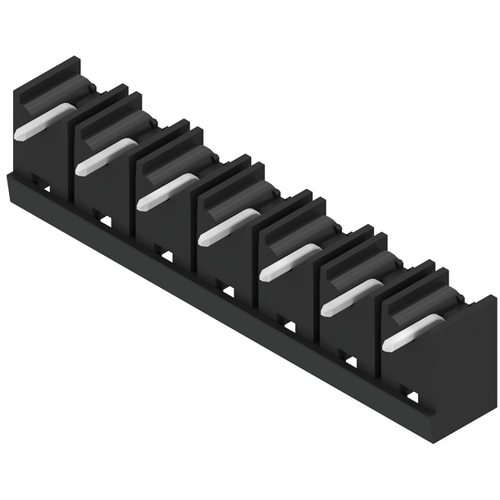

Pin header, 7 pole, pitch 7.62 mm, angled, black, 1472290000
Order No.: 51P4121
EAN: 4050118317459
MPN:
1472290000
SL 7.62HP/07/270G 3.2SN BK BX
Unit Price (€ / pc.)
2.9750 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
2.98 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9750 €
10 pcs.
2.7489 €
50 pcs.
2.4990 €
100 pcs.
2.2372 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1472290000, Weidmüller

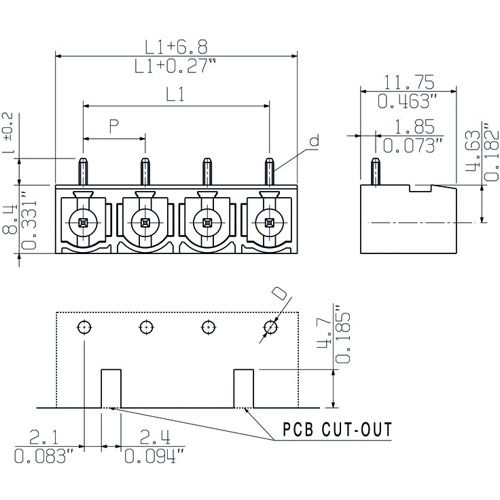

PCB connector, side entry, THT solder termination, 7.62 mm, no. of poles: 7, 270°, 3.2 mm, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | black | |
| Rated current | 27.5 A | |
| Grid | 7.62 mm | |
| Pin number | 7 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 630 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
