1465190000 | Weidmüller

Pin header, 8 pole, pitch 5.08 mm, straight, green, 1465190000

Order No.: 50P5850
EAN: 4050118271874
MPN:
1465190000
SLS 5.08/08/180B SN GN BX

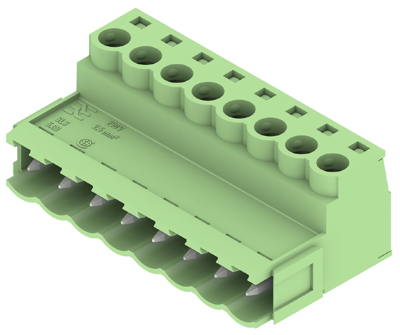

1465190000 Weidmüller PCB Connection Systems Image 1

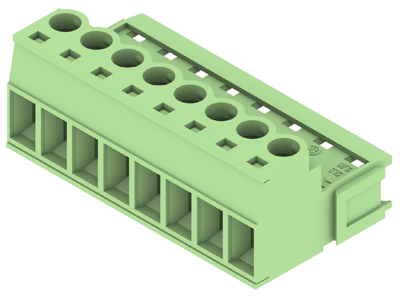

1465190000 Weidmüller PCB Connection Systems Image 2

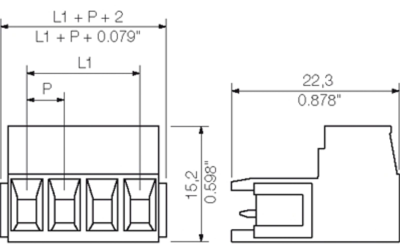

1465190000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
6.5450 € *
Available in 6 Days: 210 pcs. - if ordered today
Total Price:
6.55 € *
Price list
Quantity
Price per unit*
1 pcs.
6.5450 €
10 pcs.
6.1047 €
50 pcs.
5.7120 €
100 pcs.
5.3669 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB plug-in connector, 1465190000, Weidmüller

Male plug with clamping-yoke screw wire-connection system. The male plug provides space for labelling and can be coded.

Technical specifications
Filter Property Value
Colour green
Connection pull-bar connection
Rated current 21.5 A
Orientation straight
Rated voltage 400 V
contact surface tin-plated
Contact type pin
Version pin header
Grid 5.08 mm
Number of rows 1
Pin number 8 pole
Logistics
Property Value
Country of origin CZ
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
