1417100000 | Weidmüller

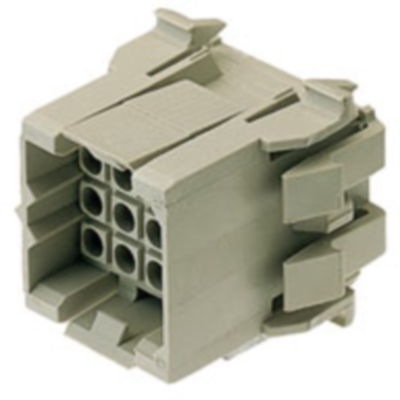

Pin header, 18 pole, pitch 5 mm, straight, gray, 1417100000
Order No.: 51P3006
EAN: 4008190103361
MPN:
1417100000
RSV1,6 S18 GR
Series: OMNIMATE Signal - Serie RSV
Unit Price (€ / pc.)
5.5573 € *
Available: 4 pcs.
Available in 6 Days: 125 pcs. - if ordered today
Total Price:
5.56 € *
Price list
Quantity
Price per unit*
1 pcs.
5.5573 €
10 pcs.
5.1170 €
50 pcs.
4.6529 €
100 pcs.
4.1888 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1417100000, Weidmüller
PCB connector, closed side, 5.00 mm, no. of poles: 18, pebble grey, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| contact surface | tin-plated | |
| Grid | 5 mm | |
| Version | pin header | |
| Rated current | 17 A | |
| Colour | gray | |
| Connection | crimp connection | |
| Contact type | pin | |
| Rated voltage | 630 V | |
| Pin number | 18 pole | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
