1398900000 | Weidmüller
Socket header, 6 pole, pitch 7.62 mm, straight, black, 1398900000
Order No.: 51P2879
EAN: 4050118200874
MPN:
1398900000
BLZ 7.62IT/06/180MF3 SN BK BX
Unit Price (€ / pc.)
16.4815 € *
Available in 5 Days: 750 pcs. - if ordered today

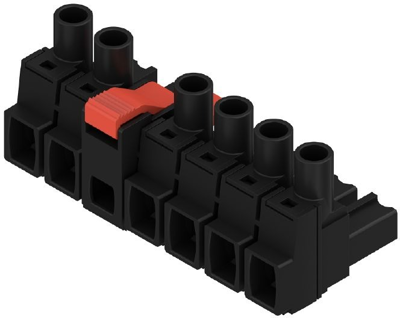

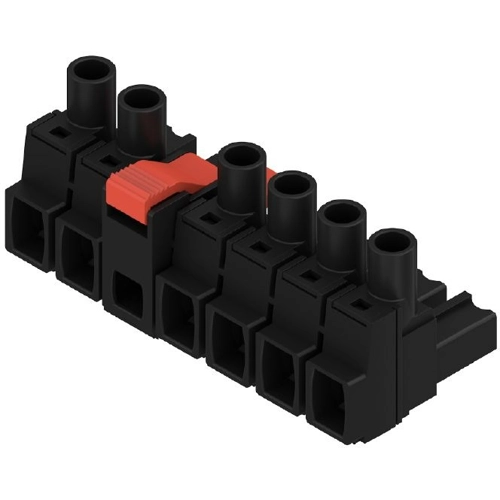

Female connector, 1398900000, Weidmüller
PCB connectors, center flange, 7.62 mm, no. of poles: 6, tin plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Grid | 7.62 mm | |
| Rated voltage | 630 V | |
| Number of rows | 1 | |
| Additional parts | equipped | |
| Orientation | straight | |
| Version | socket header | |
| Colour | black | |
| contact surface | tin-plated | |
| Contact type | socket | |
| Pin number | 6 pole | |
| Rated current | 29 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
