1368250000 | Weidmüller

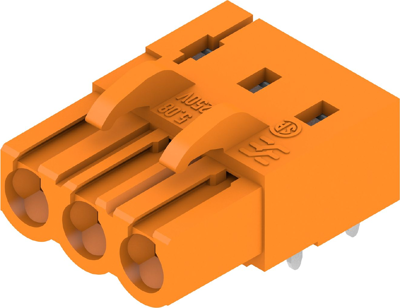

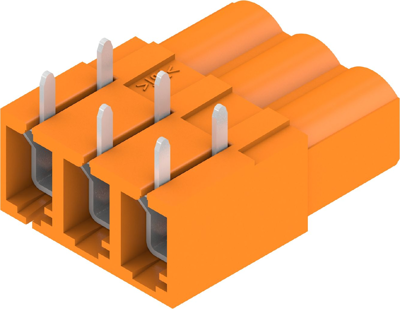

Socket header, 3 pole, pitch 5.08 mm, angled, orange, 1368250000
Order No.: 50P2688
EAN: 4050118170184
MPN:
1368250000
BLL 5.08/03/90 3.2 SN OR BX TB
Unit Price (€ / pc.)
1.8445 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
1.84 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8445 €
10 pcs.
1.7017 €
50 pcs.
1.5827 €
100 pcs.
1.4756 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB plug-in connector, 1368250000, WEIDMÜLLER
PCB plug-in connector, female header, closed side, THT solder connection, 5.08 mm, Number of poles: 3, 90°, Solder pin length (l): 3.2 mm, tinned, orange.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| Pin number | 3 pole | |
| Colour | orange | |
| Contact type | pin | |
| Rated current | 23 A | |
| Version | socket header | |
| Connection | solder connection | |
| Number of rows | 1 | |
| Rated voltage | 400 V | |
| contact surface | tin-plated | |
| Orientation | angled |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
