1364560000 | Weidmüller

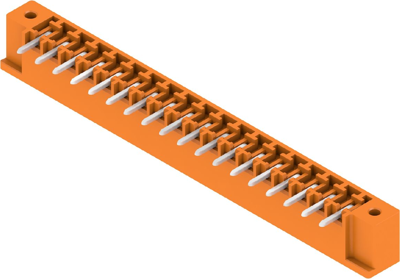

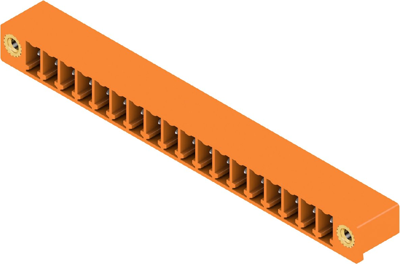

Pin header, 18 pole, pitch 3.81 mm, angled, orange, 1364560000
Order No.: 50P0090
EAN: 4050118166415
MPN:
1364560000
SC 3.81/18/270F 3.2SN OR BX
Unit Price (€ / pc.)
10.2459 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
10.25 € *
Price list
Quantity
Price per unit*
1 pcs.
10.2459 €
10 pcs.
9.2225 €
50 pcs.
8.6513 €
100 pcs.
8.1396 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB plug-in connector, 1364560000, Weidmüller

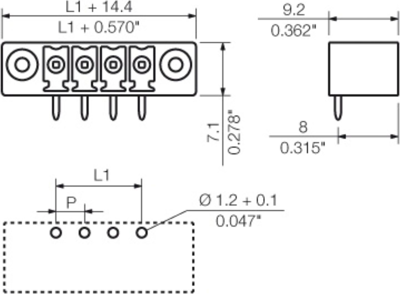

PCB plug-in connector, male header, Flange, THT solder connection, 3.81 mm, Number of poles: 18, 270°, Solder pin length (l): 3.2 mm, tinned, orange.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 17.5 A | |
| Version | pin header | |
| Number of rows | 1 | |
| Connection | solder connection | |
| Contact type | pin | |
| Grid | 3.81 mm | |
| Pin number | 18 pole | |
| Rated voltage | 320 V | |
| Orientation | angled | |
| contact surface | tin-plated | |
| Type of locking | No | |
| Colour | orange |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
