1359550000 | Weidmüller
Pin header, 20 pole, pitch 3.5 mm, angled, black, 1359550000
Order No.: 51P2410
EAN: 4050118162820
MPN:
1359550000
S2C-SMT 3.50/20/90G 3.2SN BK RL
Unit Price (€ / pc.)
4.7481 € *
Standard delivery time from the manufacturer is: 7 Weeks

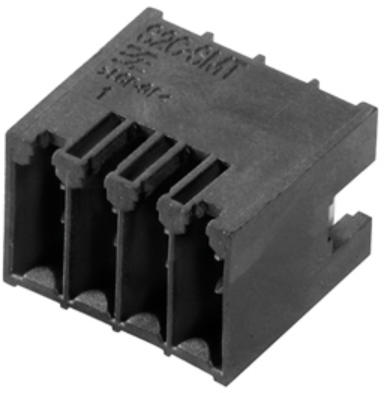

Male connector, 1359550000, Weidmüller
Board Connector, lateral closed, THT/THR solder termination, 3.50 mm, no. of poles: 20, 90°, 3.2 mm, tinned, black, tape (Ø 330 mm).
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 13.4 A | |
| Grid | 3.5 mm | |
| Pin number | 20 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 200 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
