1358770000 | Weidmüller

Pin header, 10 pole, pitch 3.5 mm, straight, black, 1358770000

Order No.: 51P2362
EAN: 4050118161915
MPN:
1358770000
S2C-SMT 3.50/10/180G 3.5SN BK RL

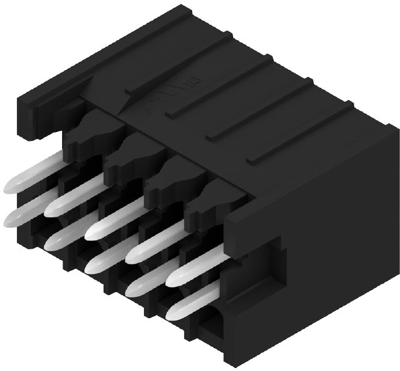

1358770000 Weidmüller PCB Connection Systems Image 1

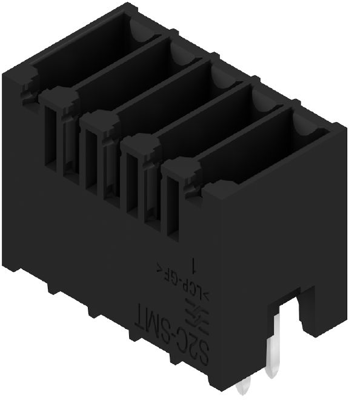

1358770000 Weidmüller PCB Connection Systems Image 2

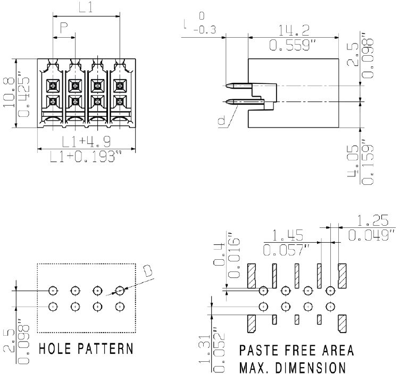

1358770000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
2.6894 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
2.69 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.6894 €

Male connector, 1358770000, Weidmüller

Printed circuit board connector, closed side, THT/THR solder termination, 3.50 mm, no. of poles: 10, 180°, 3.5 mm, tinned, black, tape (Ø 330 mm).

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Colour black
contact surface tin-plated
Rated current 13.4 A
Grid 3.5 mm
Pin number 10 pole
Version pin header
Additional parts equipped
Orientation straight
Connection PCB connection
Contact type pin
Rated voltage 200 V
Number of rows 2
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
