1357230000 | Weidmüller

Socket header, 16 pole, pitch 5.08 mm, angled, green, 1357230000

Order No.: 50P5606
EAN: 4050118160086
MPN:
1357230000
BLZP 5.08HC/16/225B SN GN BX

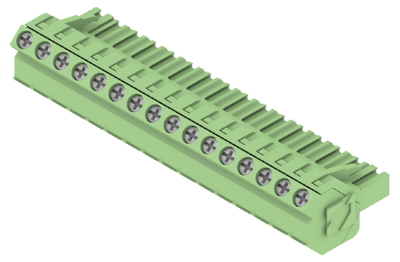

1357230000 Weidmüller PCB Connection Systems Image 1

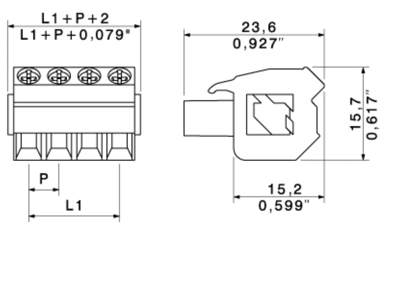

1357230000 Weidmüller PCB Connection Systems Image 2

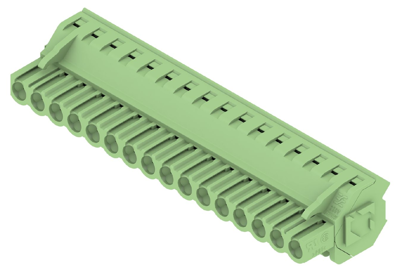

1357230000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
14.6846 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
14.68 € *
Price list
Quantity
Price per unit*
1 pcs.
14.6846 €
10 pcs.
13.6850 €
50 pcs.
12.8163 €
100 pcs.
12.0547 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB plug-in connector, 1357230000, Weidmüller

Clamping-yoke connection with right-angled (90° or 270°) or angled (225°) outlet direction. The female connector provides space for labelling and can be coded. Fastened by means of a flange or release latch. It also provides an integrated plus/minus screw, protection against faulty insertion of the wire, and is delivered with an open clamping yoke.

Technical specifications
Filter Property Value
Colour green
Connection pull-bar connection
Rated current 17.5 A
Orientation angled
Rated voltage 400 V
contact surface tin-plated
Contact type socket
Version socket header
Grid 5.08 mm
Number of rows 1
Pin number 16 pole
Logistics
Property Value
Country of origin RO
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
