1353640000 | Weidmüller
Pin header, 7 pole, pitch 5.08 mm, straight, orange, 1353640000
Order No.: 51P2260
EAN: 4050118156355
MPN:
1353640000
SLF 5.08/07/180DF SN OR BX
Unit Price (€ / pc.)
7.0567 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
7.06 € *
Price list
Quantity
Price per unit*
1 pcs.
7.0567 €
10 pcs.
6.5688 €
50 pcs.
5.9857 €
*incl. VAT plus shipping costs
Subject to prior sale

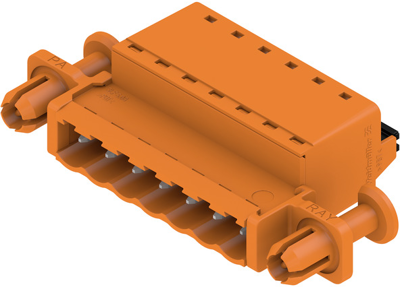

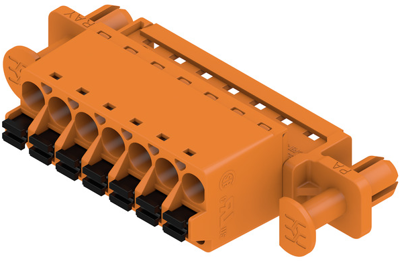

Male connector, 1353640000, Weidmüller
PCB connector, male header, feedthrough, 5.08 mm, no. of poles: 7, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | orange | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Connection | spring connection | |
| Rated voltage | 400 V | |
| Orientation | straight | |
| contact surface | tin-plated | |
| Version | pin header | |
| Pin number | 7 pole | |
| Contact type | pin | |
| Grid | 5.08 mm | |
| Rated current | 25.9 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
