1353630000 | Weidmüller

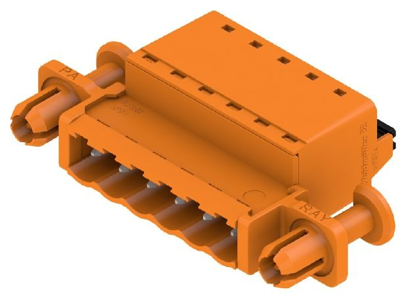

Pin header, 6 pole, pitch 5.08 mm, straight, orange, 1353630000
Order No.: 51P2259
EAN: 4050118156393
MPN:
1353630000
SLF 5.08/06/180DF SN OR BX
Unit Price (€ / pc.)
6.1999 € *
Available in 6 Days: 60 pcs. - if ordered today
Total Price:
6.20 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1999 €
10 pcs.
5.7596 €
50 pcs.
5.2360 €
*incl. VAT plus shipping costs
Subject to prior sale

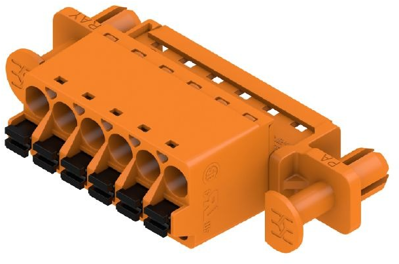

Male connector, 1353630000, Weidmüller
Printed circuit board connector, male header, feedthrough, 5.08 mm, no. of poles: 6, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of rows | 1 | |
| Grid | 5.08 mm | |
| contact surface | tin-plated | |
| Connection | spring connection | |
| Version | pin header | |
| Contact type | pin | |
| Rated voltage | 400 V | |
| Additional parts | equipped | |
| Orientation | straight | |
| Rated current | 25.9 A | |
| Colour | orange | |
| Pin number | 6 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
