1353620000 | Weidmüller

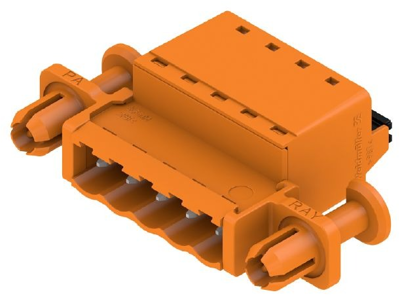

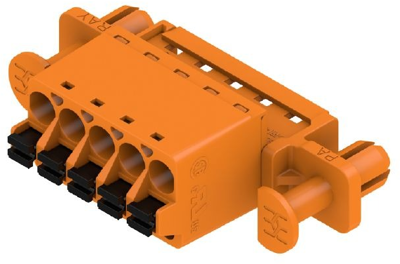

Pin header, 5 pole, pitch 5.08 mm, straight, orange, 1353620000
Order No.: 51P2258
EAN: 4050118156416
MPN:
1353620000
SLF 5.08/05/180DF SN OR BX
Unit Price (€ / pc.)
5.3312 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
5.33 € *
Price list
Quantity
Price per unit*
1 pcs.
5.3312 €
10 pcs.
4.9504 €
50 pcs.
4.4982 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1353620000, Weidmüller
Printed Circuit Board Connector, Male Connector, Feedthrough, 5.08 mm, No. of Poles: 5, tinned, orange, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 400 V | |
| Orientation | straight | |
| Pin number | 5 pole | |
| Version | pin header | |
| Colour | orange | |
| Grid | 5.08 mm | |
| Rated current | 25.9 A | |
| Contact type | pin | |
| Number of rows | 1 | |
| Connection | spring connection | |
| contact surface | tin-plated | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
