1353540000 | Weidmüller
Pin header, 8 pole, pitch 5.08 mm, straight, orange, 1353540000
Order No.: 51P2252
EAN: 4050118156058
MPN:
1353540000
SLS 5.08/08/180DF SN OR BX
Unit Price (€ / pc.)
8.1753 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
8.18 € *
Price list
Quantity
Price per unit*
1 pcs.
8.1753 €
10 pcs.
7.6279 €
50 pcs.
6.9258 €
*incl. VAT plus shipping costs
Subject to prior sale

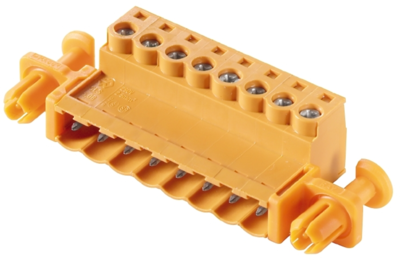

Male connector, 1353540000, Weidmüller
Printed circuit board connector, male header, feedthrough, 5.08 mm, no. of poles: 8, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | orange | |
| contact surface | tin-plated | |
| Rated current | 21.5 A | |
| Grid | 5.08 mm | |
| Pin number | 8 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | screw connection | |
| Contact type | pin | |
| Rated voltage | 400 V | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
