1336430000 | Weidmüller

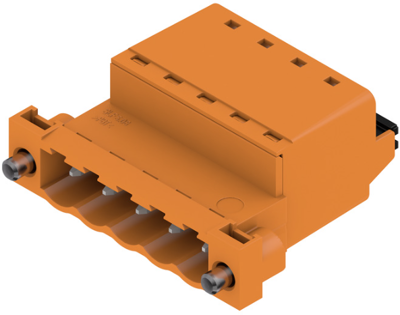

Pin header, 5 pole, pitch 5.08 mm, straight, orange, 1336430000
Order No.: 51P1666
EAN: 4050118140729
MPN:
1336430000
SLF 5.08/05/180FI SN OR BX
Unit Price (€ / pc.)
1.7969 € *
Available in 5 Days: 108 pcs. - if ordered today
Male connector, 1336430000, Weidmüller
PCB Connector, Male Connector, Flange Inverted, 5.08 mm, No. of Poles: 5, tinned, orange, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | tin-plated | |
| Number of rows | 1 | |
| Contact type | pin | |
| Colour | orange | |
| Pin number | 5 pole | |
| Grid | 5.08 mm | |
| Orientation | straight | |
| Rated voltage | 400 V | |
| Additional parts | equipped | |
| Rated current | 25.9 A | |
| Connection | spring connection | |
| Version | pin header |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
