1335430000 | Weidmüller
Pin header, 12 pole, pitch 5.08 mm, straight, orange, 1335430000
Order No.: 51P1590
EAN: 4050118138771
MPN:
1335430000
SLF 5.08/12/180 SN OR BX
Unit Price (€ / pc.)
7.5089 € *
Standard delivery time from the manufacturer is: 7 Weeks

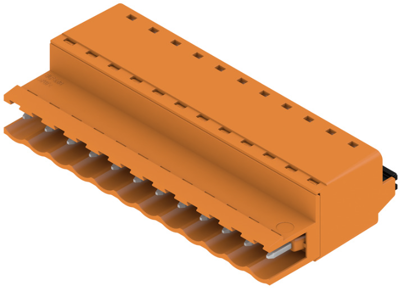

Male connector, 1335430000, Weidmüller
Printed circuit board connector, male header, side open, 5.08 mm, no. of poles: 12, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | orange | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Connection | spring connection | |
| Rated voltage | 400 V | |
| Orientation | straight | |
| contact surface | tin-plated | |
| Version | pin header | |
| Pin number | 12 pole | |
| Contact type | pin | |
| Grid | 5.08 mm | |
| Rated current | 25.9 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
