1312730000 | Weidmüller

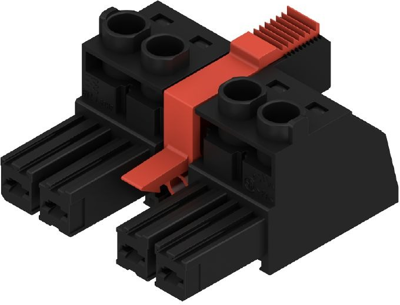

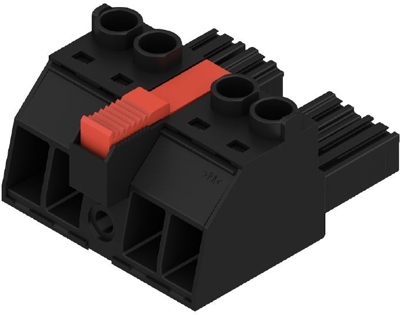

Socket header, 4 pole, pitch 7.62 mm, straight, black, 1312730000
Order No.: 51P1074
EAN: 4050118115635
MPN:
1312730000
BVZ 7.62IT/04/180MF3 SN BK BX
Unit Price (€ / pc.)
7.3185 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
7.32 € *
Price list
Quantity
Price per unit*
1 pcs.
7.3185 €
10 pcs.
6.8068 €
50 pcs.
6.1880 €
*incl. VAT plus shipping costs
Subject to prior sale
Female connector, 1312730000, Weidmüller
PCB connector, center flange, 7.62 mm, no. of poles: 4, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Version | socket header | |
| Pin number | 4 pole | |
| Orientation | straight | |
| Grid | 7.62 mm | |
| Rated voltage | 1 kV | |
| Rated current | 57 A | |
| Additional parts | equipped | |
| Contact type | socket | |
| Connection | screw connection | |
| Number of rows | 1 | |
| contact surface | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
