1291390000 | Weidmüller

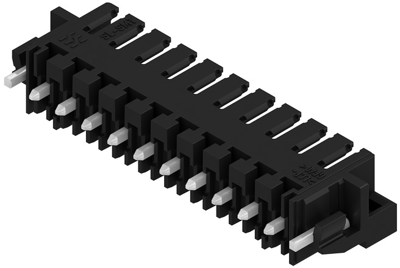

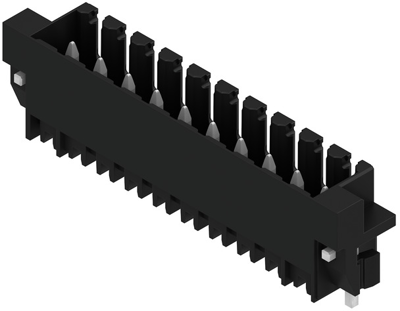

Pin header, 10 pole, pitch 3.5 mm, straight, black, 1291390000
Order No.: 51P0505
EAN: 4050118085266
MPN:
1291390000
SL-SMT 3.50/10/180RF 1.5SN BK BX
Unit Price (€ / pc.)
4.3792 € *
Available: 20 pcs.
Available in 6 Days: 250 pcs. - if ordered today
Total Price:
4.38 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3792 €
10 pcs.
4.0222 €
50 pcs.
3.6652 €
100 pcs.
3.2963 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1291390000, Weidmüller
Board Connector, Latching Flange, THT Solder Termination, 3.50 mm, No. of Poles: 10, 180°, 1.5 mm, Tin Plated, Black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Connection | PCB connection | |
| Rated voltage | 320 V | |
| Orientation | straight | |
| contact surface | tin-plated | |
| Version | pin header | |
| Pin number | 10 pole | |
| Contact type | pin | |
| Grid | 3.5 mm | |
| Rated current | 15 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
