1290280000 | Weidmüller
Pin header, 16 pole, pitch 3.5 mm, straight, black, 1290280000
Order No.: 51P0451
EAN: 4050118083507
MPN:
1290280000
S2C-SMT 3.50/16/180LF 3.5SN BK BX
Unit Price (€ / pc.)
4.2483 € *
Available in 6 Days: 240 pcs. - if ordered today

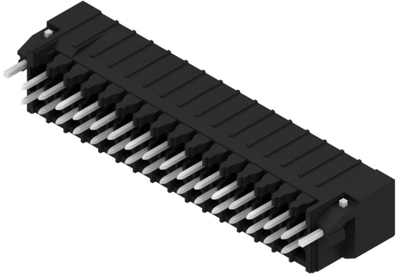

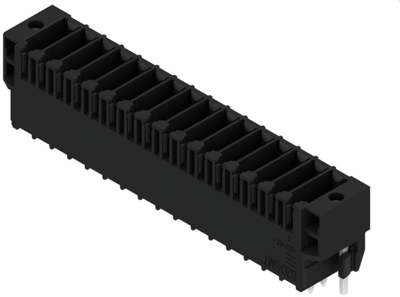

Male connector, 1290280000, Weidmüller
Printed Circuit Board Connector, Solder Flange, THT/THR Solder Termination, 3.50 mm, No. of Poles: 16, 180°, 3.5 mm, Tin Plated, Black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Rated voltage | 200 V | |
| Pin number | 16 pole | |
| contact surface | tin-plated | |
| Contact type | pin | |
| Number of rows | 2 | |
| Connection | PCB connection | |
| Colour | black | |
| Grid | 3.5 mm | |
| Rated current | 13.4 A | |
| Orientation | straight | |
| Version | pin header |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
