1289270000 | Weidmüller

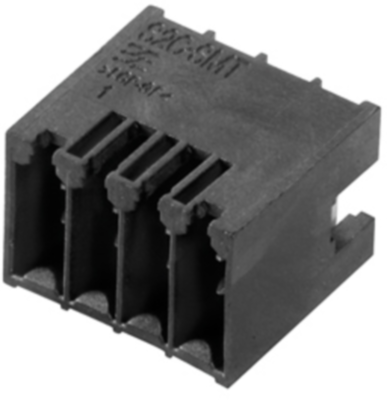

Pin header, 6 pole, pitch 3.5 mm, angled, black, 1289270000

Order No.: 51P0353
EAN: 4050118080872
MPN:
1289270000
S2C-SMT 3.50/06/90G 3.2SN BK BX
1289270000 Weidmüller PCB Connection Systems Image 1
1289270000 Weidmüller PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
1.3923 € *
Available: 151 pcs.
Available in 6 Days: 780 pcs. - if ordered today
Total Price:
1.39 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.3923 €

Male connector, 1289270000, Weidmüller

Printed Circuit Board Connector, closed side, THT/THR solder termination, 3.50 mm, no. of poles: 6, 90°, 3.2 mm, tin plated, black, box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Grid 3.5 mm
Orientation angled
Connection PCB connection
Contact type pin
Rated current 13.4 A
Additional parts equipped
Version pin header
Pin number 6 pole
contact surface tin-plated
Number of rows 2
Colour black
Rated voltage 200 V
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
