1284860000 | Weidmüller

Socket header, 6 pole, pitch 5.08 mm, angled, green, 1284860000

Order No.: 50P5573
EAN: 4050118075410
MPN:
1284860000
BLZP 5.08HC/06/90F SN GN BX

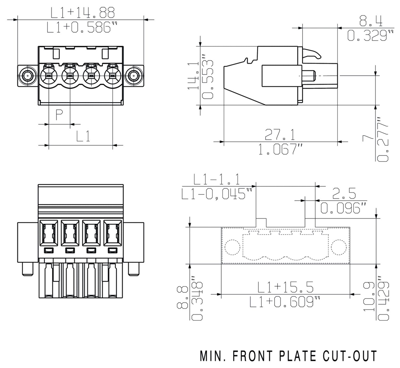

1284860000 Weidmüller PCB Connection Systems Image 1

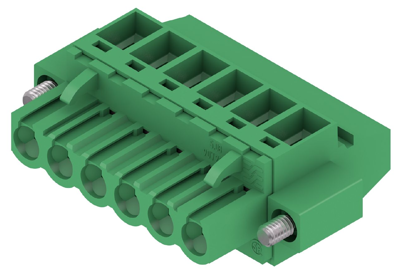

1284860000 Weidmüller PCB Connection Systems Image 2

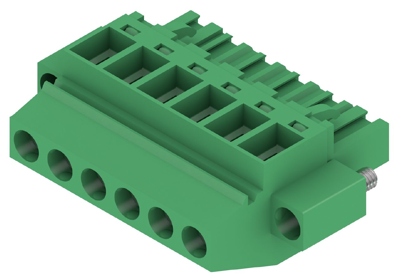

1284860000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
5.0337 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
5.03 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0337 €
10 pcs.
4.7005 €
50 pcs.
4.4030 €
100 pcs.
4.1293 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB plug-in connector, 1284860000, Weidmüller

Female plug with clamping-yoke connection for connecting a wire with a right-angle (90° or 270°) outlet direction. The female connector provides space for labelling and can be coded. Fastened by means of a flange or release latch. It also provides an integrated plus/minus screw, protection against faulty insertion of the wire, and is delivered with an open clamping yoke.

Technical specifications
Filter Property Value
Colour green
Connection pull-bar connection
Rated current 23 A
Orientation angled
Rated voltage 400 V
contact surface tin-plated
Contact type socket
Version socket header
Grid 5.08 mm
Number of rows 1
Pin number 6 pole
Logistics
Property Value
Country of origin RO
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
