1283220000 | Weidmüller
Pin header, 4 pole, pitch 10.16 mm, angled, black, 1283220000
Order No.: 50P0538
EAN: 4050118073164
MPN:
1283220000
SU 10.16IT/04/90MLSF4 3.5 AG BK BX
Unit Price (€ / pc.)
7.8421 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
7.84 € *
Price list
Quantity
Price per unit*
1 pcs.
7.8421 €
10 pcs.
7.0567 €
50 pcs.
6.6164 €
100 pcs.
6.2237 €
*incl. VAT plus shipping costs
Subject to prior sale

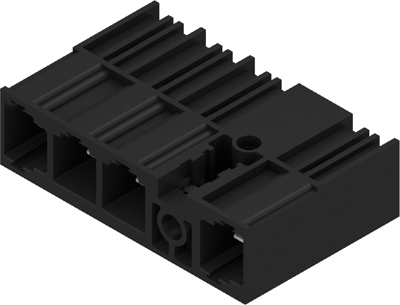

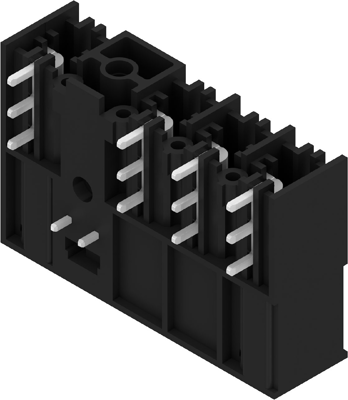

PCB plug-in connector, 1283220000, Weidmüller
PCB plug-in connector, male header, closed side, Middle flange, THT solder connection, 10.16 mm, Number of poles: 4, 90°, Solder pin length (l): 3.5 mm, silver-plated, black.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 78.3 A | |
| contact surface | silver-plated | |
| Colour | black | |
| Contact type | pin | |
| Grid | 10.16 mm | |
| Orientation | angled | |
| Rated voltage | 1000 V | |
| Connection | solder connection | |
| Pin number | 4 pole | |
| Version | pin header | |
| Type of locking | No | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
