1277870000 | Weidmüller

Socket header, 6 pole, pitch 3.5 mm, straight, black, 1277870000

Order No.: 51P0021
EAN: 4050118068849
MPN:
1277870000
B2CF 3.50/06/180F SN BK BX

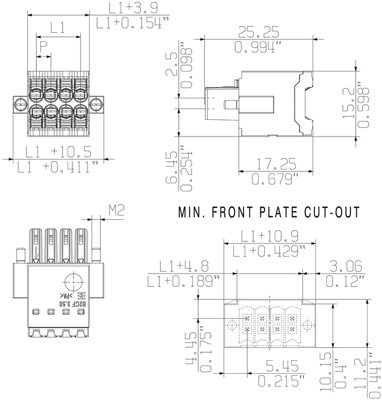

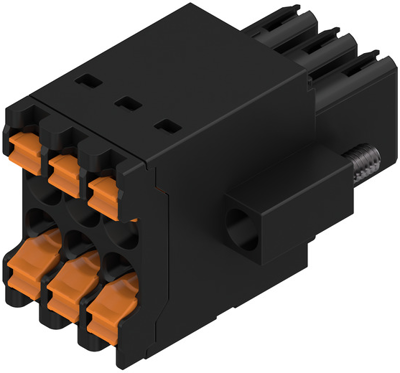

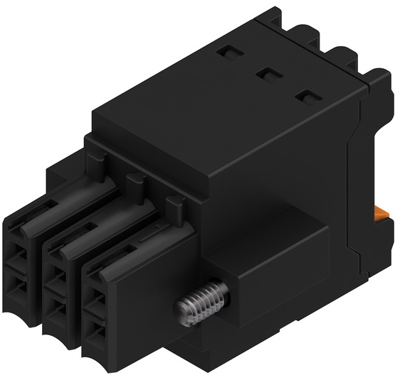

1277870000 Weidmüller PCB Connection Systems Image 1
1277870000 Weidmüller PCB Connection Systems Image 2
1277870000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
5.2479 € *
Available: 5 pcs.
Total Price:
5.25 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2479 €
10 pcs.
4.8314 €
50 pcs.
4.3911 €
100 pcs.
3.9508 €
*incl. VAT plus shipping costs
Subject to prior sale

Female connector, 1277870000, Weidmüller

PCB connectors, flange, 3.50 mm, no. of poles: 6, tin-plated, black, box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Grid 3.5 mm
Orientation straight
Connection spring connection
Contact type socket
Rated current 13.4 A
Additional parts equipped
Version socket header
Pin number 6 pole
contact surface tin-plated
Number of rows 2
Colour black
Rated voltage 320 V
Logistics
Property Value
Country of origin RO
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
