1277430000 | Weidmüller

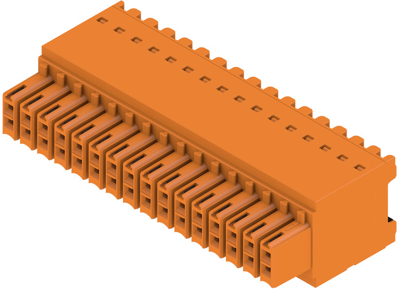

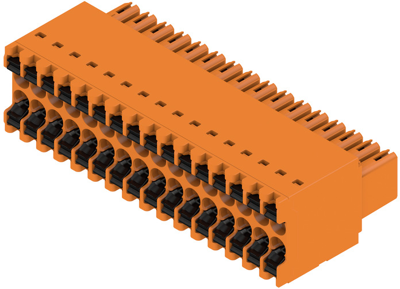

Socket header, 32 pole, pitch 3.5 mm, straight, orange, 1277430000
Order No.: 50P9982
EAN: 4050118067637
MPN:
1277430000
B2CF 3.50/32/180 SN OR BX
Unit Price (€ / pc.)
17.2669 € *
Standard delivery time from the manufacturer is: 3 Weeks
Female connector, 1277430000, Weidmüller
PCB connectors, side mount, closed, 3.50 mm, no. of poles: 32, tin plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | orange | |
| contact surface | tin-plated | |
| Rated current | 13.4 A | |
| Grid | 3.5 mm | |
| Pin number | 32 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | spring connection | |
| Contact type | socket | |
| Rated voltage | 320 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
