1250650000 | Weidmüller

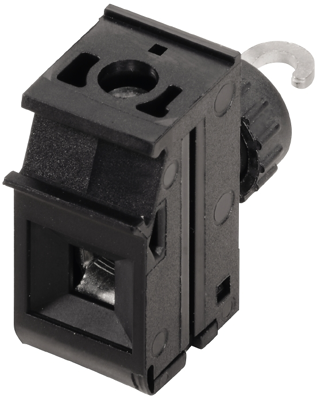

PCB terminal, pitch 10 mm, straight, black, 1250650000
Unit Price (€ / pc.)
2.8798 € *
Available in 6 Days: 25,000 pcs. - if ordered today
Total Price:
2.88 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8798 €
10 pcs.
2.6418 €
50 pcs.
2.4157 €
100 pcs.
2.1658 €
*incl. VAT plus shipping costs
Subject to prior sale
Feed-through terminal, 1250650000, Weidmüller
The 1250650000 is a feed-through terminal with an insulated housing and clamping yoke connections on the external side, and a solder connection on the internal side for use in encapsulated devices.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 10 mm | |
| Breakable | No | |
| contact surface | tin-plated | |
| Connection | screw connection | |
| Rated voltage | 500 V | |
| Orientation | straight | |
| Number of rows | 1 | |
| Additional parts | equipped | |
| Colour | black | |
| Version | PCB connector | |
| Rated current | 32 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
