1237550000 | Weidmüller
Pin header, 4 pole, pitch 3.81 mm, straight, orange, 1237550000
Order No.: 50P9392
EAN: 4050118023558
MPN:
1237550000
SCZ 3.81/04/180FIZE SN OR BX
Unit Price (€ / pc.)
6.2475 € *
Available: 42 pcs.
Total Price:
6.25 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2475 €
10 pcs.
5.7477 €
50 pcs.
5.2360 €
100 pcs.
4.7243 €
*incl. VAT plus shipping costs
Subject to prior sale

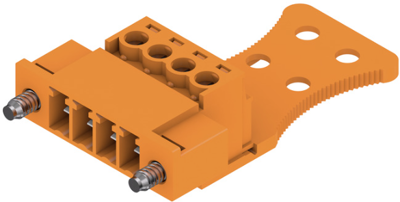

Male connector, 1237550000, Weidmüller
PCB connector, latching flange inverted, strain relief, 3.81 mm, no. of poles: 4, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.81 mm | |
| Orientation | straight | |
| Connection | clamp connection | |
| Contact type | pin | |
| Rated current | 17.5 A | |
| Additional parts | equipped | |
| Version | pin header | |
| Pin number | 4 pole | |
| contact surface | tin-plated | |
| Number of rows | 1 | |
| Colour | orange | |
| Rated voltage | 320 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
