1237040000 | Weidmüller
Pin header, 8 pole, pitch 3.81 mm, straight, orange, 1237040000
Order No.: 50P9368
EAN: 4050118022377
MPN:
1237040000
SCZ 3.81/08/180GZE SN OR BX
Unit Price (€ / pc.)
7.0686 € *
Standard delivery time from the manufacturer is: 12 Weeks

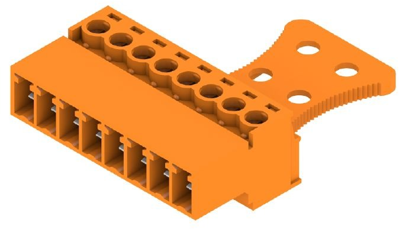

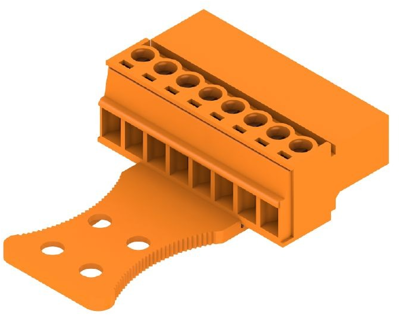

Male connector, 1237040000, Weidmüller
Printed circuit board connector, closed side, strain relief, 3.81 mm, no. of poles: 8, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | orange | |
| contact surface | tin-plated | |
| Rated current | 17.5 A | |
| Grid | 3.81 mm | |
| Pin number | 8 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | clamp connection | |
| Contact type | pin | |
| Rated voltage | 320 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
