1236280000 | Weidmüller

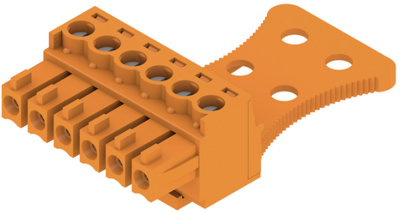

Socket header, 6 pole, pitch 3.81 mm, straight, orange, 1236280000
Order No.: 50P9317
EAN: 4050118021592
MPN:
1236280000
BCZ 3.81/06/180ZE SN OR BX
Unit Price (€ / pc.)
4.7481 € *
Standard delivery time from the manufacturer is: 12 Weeks
Female connector, 1236280000, Weidmüller
Printed Circuit Board Connector, Side Closed, Strain Relief, 3.81 mm, No. of Poles: 6, tinned, orange, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | orange | |
| contact surface | tin-plated | |
| Rated current | 17.5 A | |
| Grid | 3.81 mm | |
| Pin number | 6 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | screw connection | |
| Contact type | socket | |
| Rated voltage | 320 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
