1230250000 | Weidmüller

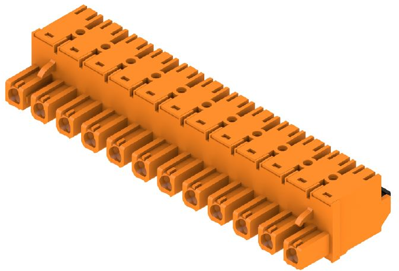

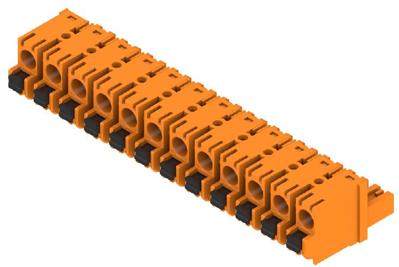

Socket header, 12 pole, pitch 7.62 mm, straight, orange, 1230250000
Order No.: 50P9128
EAN: 4050118014006
MPN:
1230250000
BLF 7.62HP/12/180 SN OR BX
Unit Price (€ / pc.)
12.0666 € *
Standard delivery time from the manufacturer is: 7 Weeks
Female connector, 1230250000, Weidmüller
PCB connector, closed side, 7.62 mm, no. of poles: 12, tin plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| Contact type | socket | |
| Pin number | 12 pole | |
| Grid | 7.62 mm | |
| Connection | spring connection | |
| Orientation | straight | |
| contact surface | tin-plated | |
| Rated voltage | 1 kV | |
| Rated current | 24 A | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | orange |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
